Waterproof RJ45 Connector Cable Network Double Head Adapter Coupler Extension | Обустройство

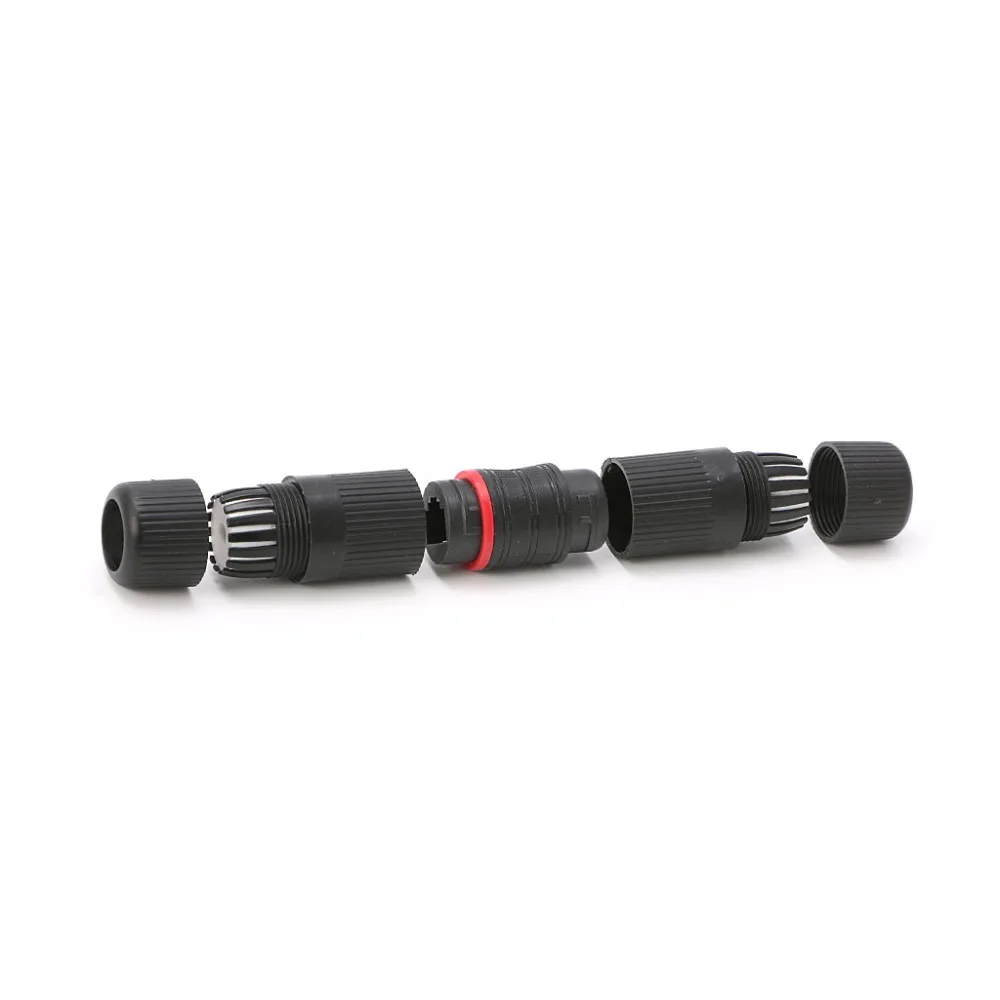

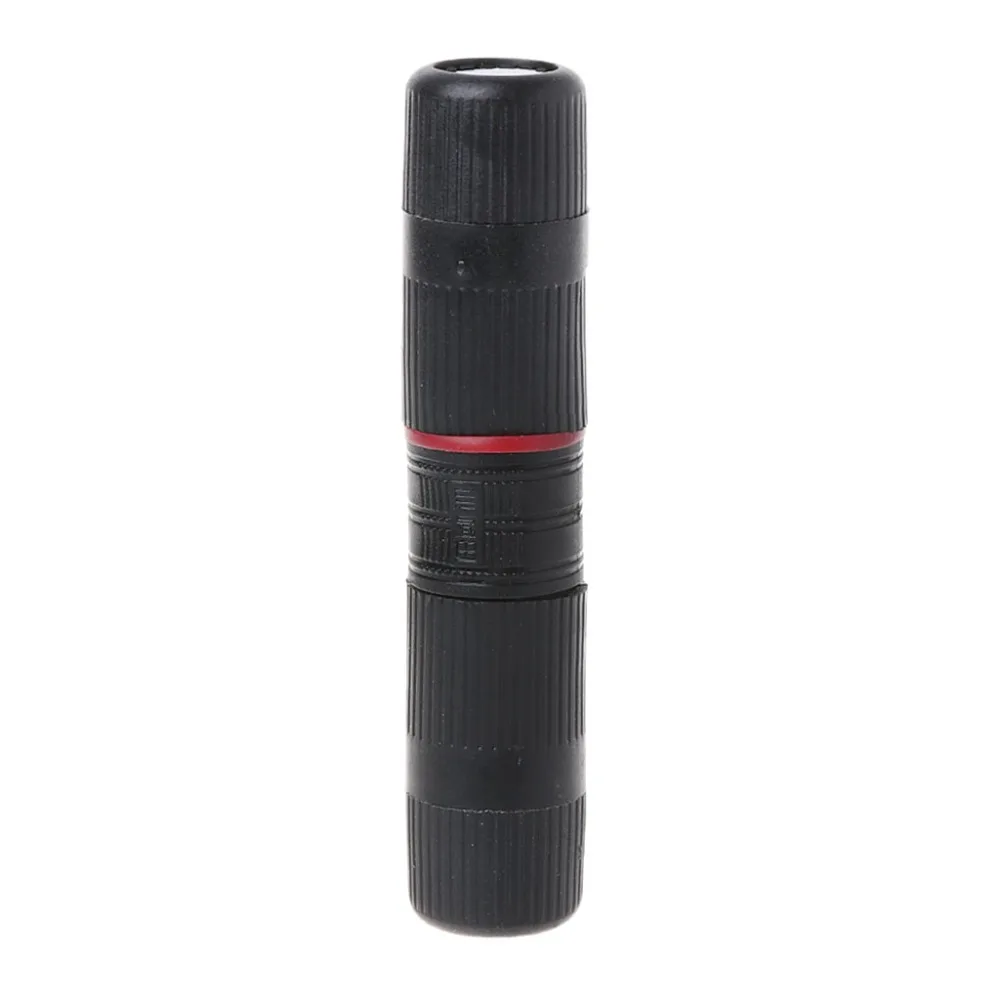

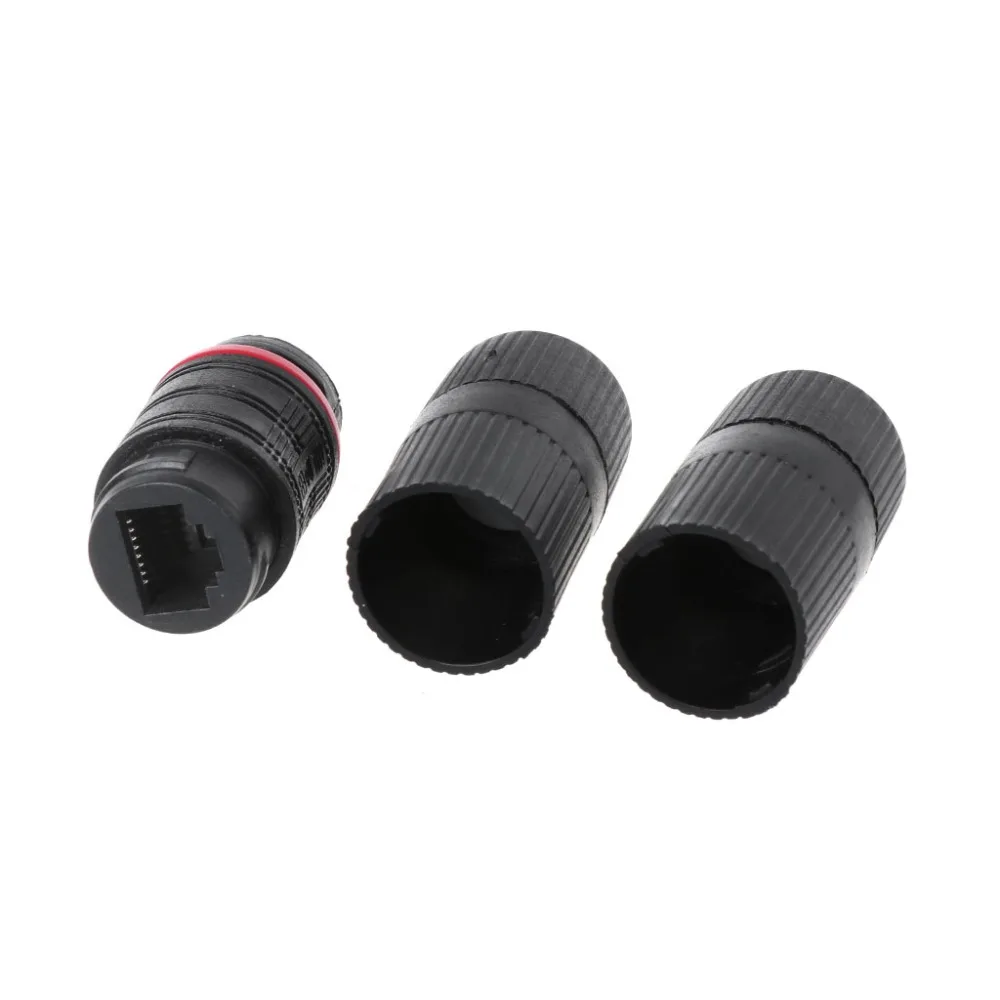

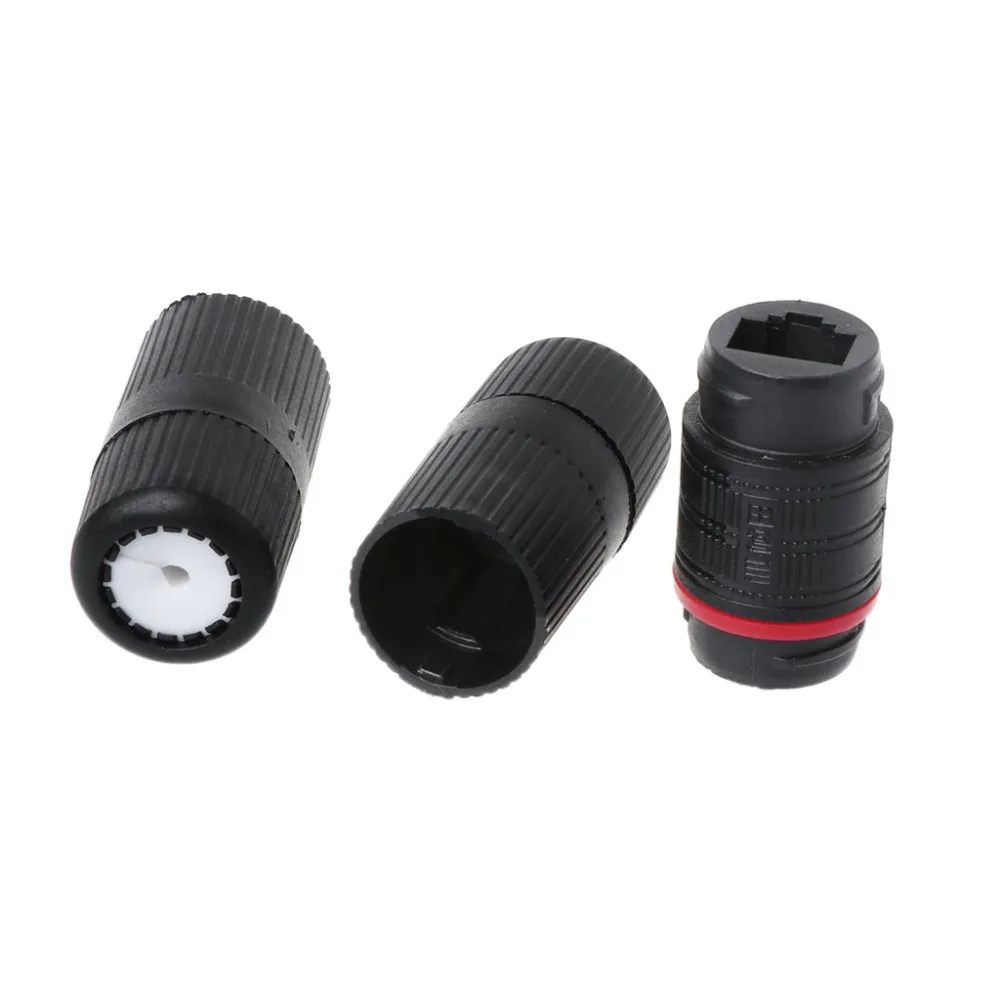

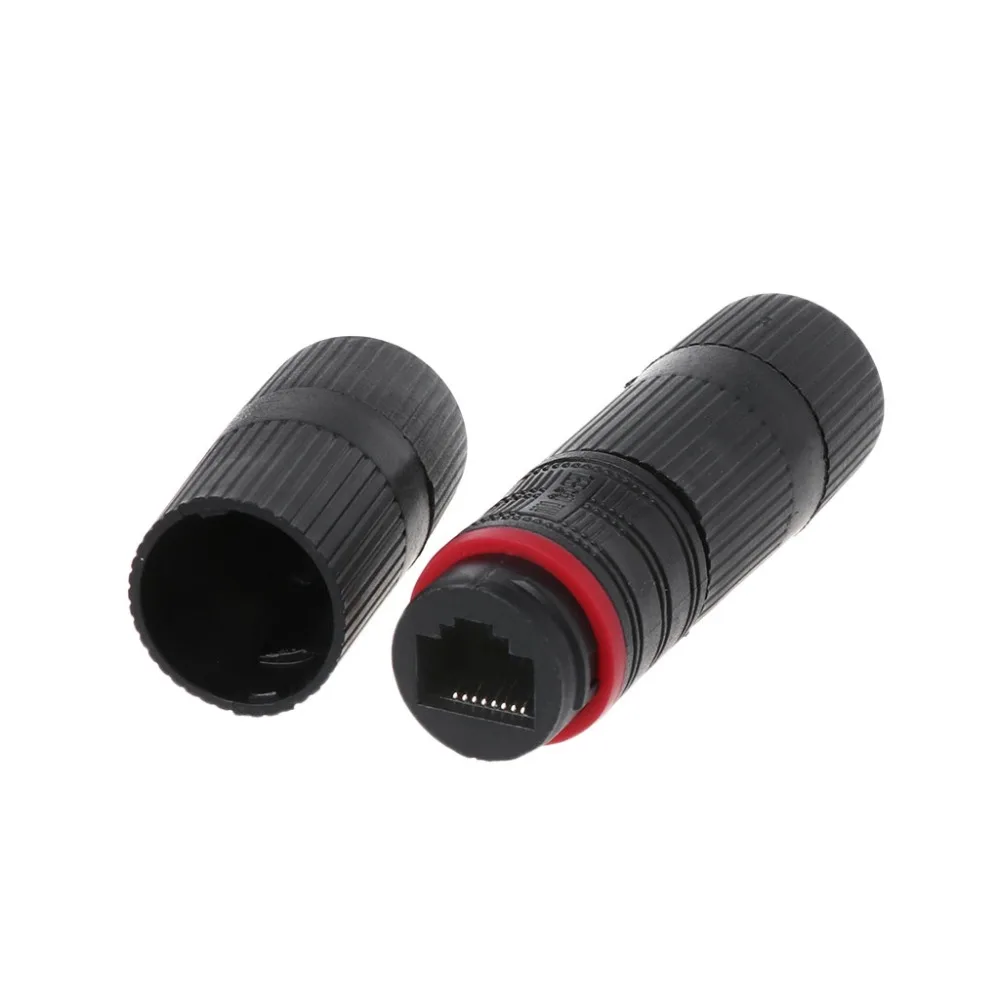

Waterproof RJ45 Connector Cable Network Double Head Adapter Coupler Extension![1AA300424-2]()
![1AA300424-9]()
![1AA300424]()
![1AA300424-3]()
![1AA300424-4]()
![1AA300424-5]()
![1AA300424-6]()
![1AA300424-7]()
Features:
100% brand new and high quality
New structures, new abrasive, smaller, space-saving, quick installation.
Using environmentally friendly materials, fire-retardant / anti-UV, and longer life.
Dust cover inside the glue pads, not falling, will not seepage.
Butt cable to cable: both ends are net interface, the whole symmetry.
The two net cables with crystal heads are connected in series, extending and butting into a longer net line.
The net cable with crystal head can pass through the waterproof head, and tighten the waterproof heads at both ends, so that the apron hole is narrowed and tightened, and the mesh line is watertight.
This product can also be easily solved or short cable is broken, put the two short cable into a long cable.
Often plug cable equipment, can also be used to protect the equipment interface.
Role: indoor and outdoor connection RJ45 network, waterproof. Protect the cable.
Suitable for outdoor LED equipment, grating, CCTV (closed-circuit monitor series), factory automation control, wireless bridge, etc.
How to use:
1. Pass the cable through the bottom cover.
2. Insert the opening silicone into the cable.(The narrower end of the silicone is aligned with the crystal head. Wrong direction will reduce waterproof performance.)
3. The cable passes through the sleeve and presses the silicone into the sleeve.
4. Insert the network cable into the socket.
5. Tighten each components.
6. Repeat the above steps on the other side.
Specification:
Protection Grade: IP67
Material: Metal, Plastic
Dimensions: 106x22mm(4.17x0.87in)(approx)
Color: Black
Quantity: 1 pc
Note:
Transition: 1cm=10mm=0.39inch
No retail package.
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package includes:
1 x Cable Connector(other accessories demo in the picture is not included.)
