19200bps 25W Radio Modem RS232 RS485 Long Range Data Ttransmitter and 100mW Wireless Receiver
Продавец: Thingsend Store
Реклама. ООО "АЛИБАБА.КОМ (РУ)", ИНН 7703380158 (erid:2SDnjdLHBG7)
Dear Customers,the package includes 1pc 25W XZ-DT25-HX-35 and 1pc 100mW XZ-DT25-UX,Please read following items carefully after placing order:
1.What frequency do you need?
2.for the interface,XZ-DT25-HX-35 has 2 interface RS232&RS485 default,if need TTL please tell us after ordering.
for the interface of XZ-DT25-UX, rs232?rs485?TTL?which do you need?
3,the air baud rate and interface(Com)baud rate can be confirgured via software by user,we set 9600bps default.
Specifications:
1.XZ-DT25-HX
Main Features:
Support frequency VHF(136MHZ-174MHZ,220-240MHZ)UHF(410MHZ-470MHZ) user programing;
Over-the-air data rate from 1200bps to 115200bps,interface data rate 1200-115200bps user programming;
With RS232&RS485 2 interface default,TTL settable in factory;
High receiving sensitivity up to -125dBm;
50km LOS long range transmission distance.

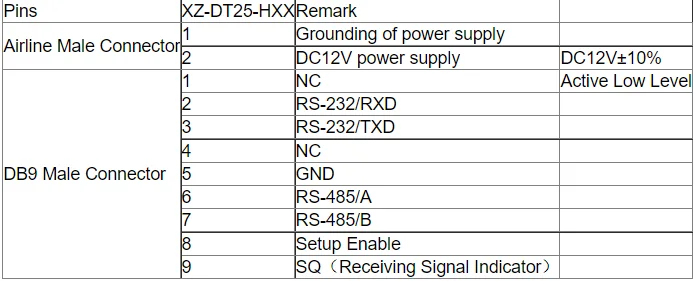

Pin Definitions

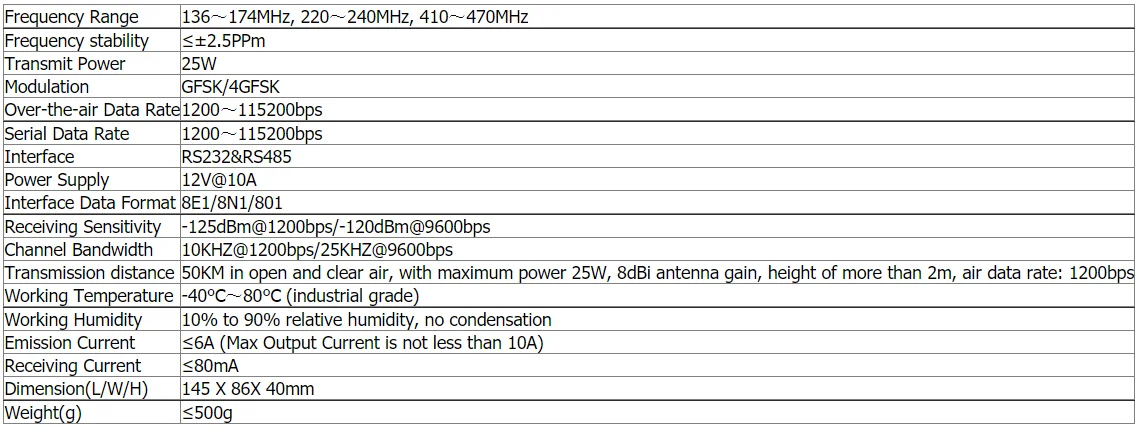

Technical Parameters
2.XZ-DT25-U1/2/4

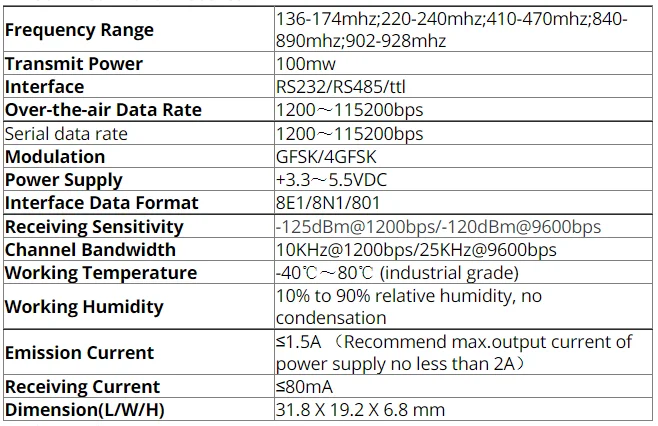

Technical Parameters:

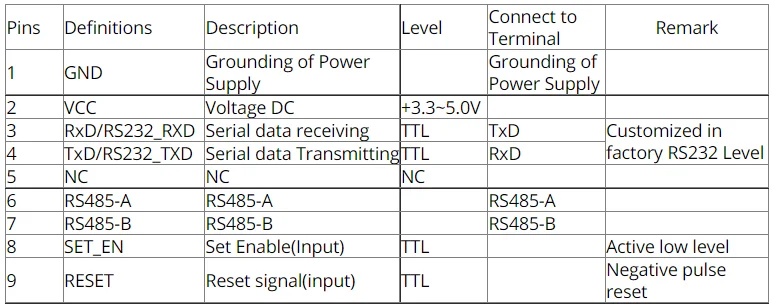

Pin Definitions
Model Number Comparison
XZ-DT25-H1/XZ-DT25-U1 means frequency136-174MHz
XZ-DT25-H2/XZ-DT25-U2 means frequency220-240MHz
XZ-DT25-H4/XZ-DT25-U4 means frequency410-470MHz
Software Programming
Default frequency channel is CH0,and frequency of CH0 can be arbitrarily set and saved by the software. Users can input/rewrite any needed Rx and Tx frequency in the software.
Package includes:
1*25W radio modem
1*power cable
1*program data cable
1*100mW rf module
1*10CM Whip Antenna;
1*9 pin Cable.
Pls kindly note we don't send free antenna for big radio modem. And for long range transmission we recommend using 5.5dbi clip antenna or fiberglass antenna for better performance.Please click the following picture and order additionally.
More Related Products
Company Information:
Shenzhen Thingsend Communication Tech Co.,Ltd
Email:sales（at）thingsend(dot)com
Contact:sarah yuan
Skype ID:+86 188 2073 9215 (skype name:wireless solutions-sarah yuan)
We're professional manufacturer of wireless sensors,2g 3g 4g lte GSM modem,Lora,wireless radio modems,OEM/ODM,wireless customized solutions/system/applications.
Welcome to contact Sarah for more information about wireless solution.
