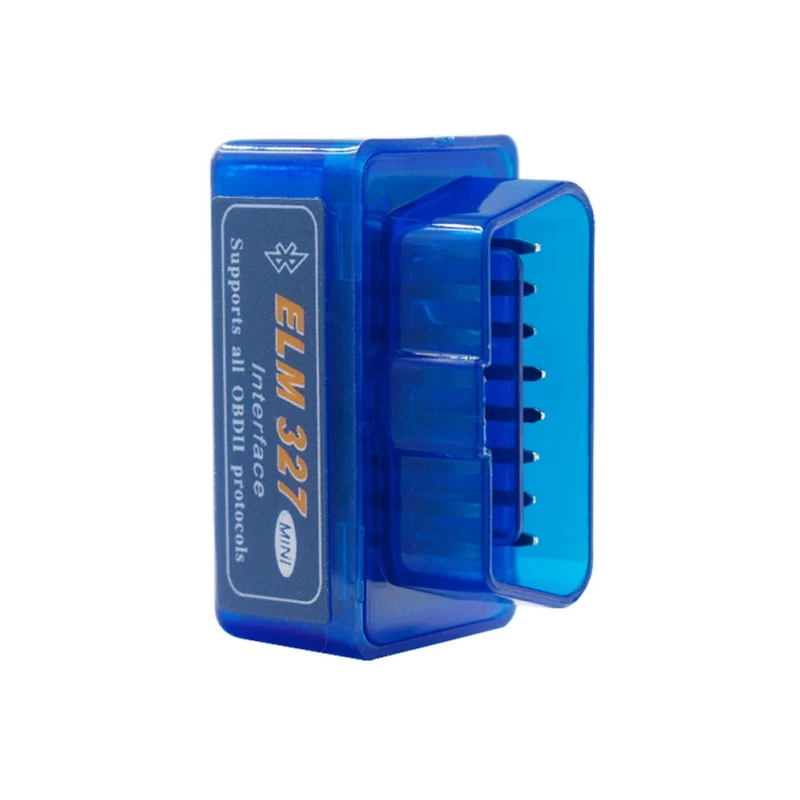

Mini ELM 327 Bluetooth V1.5 PIC 18F 25K80 ELM327 1.5 OBD2 Automotive Diagnostic Tool Support J1850 Protocols
Features:
Working voltage:12V, (to prevent short circuit / over voltage)
Nominal no-load current:45mA
Product size:3.2 * 4.7 * 2.3cm
Weight:22 grams
Package weight:45 grams
Description:
*ELM327 Bluetooth V1.5 supports all OBDII protocols as follows: SAE J1850 PWM (41.6 kbaud) / SAE J1850 VPW (10.4 kbaud) / ISO 9141-2 (5 baud initialization, 10.4 kbaud) / ISO 14230-4 KWP (5 waves Special initialization, 10.4 kbaud) / ISO 14230-4 KWP (fast initialization, 10.4 kbaud) / ISO 15765-4 CAN (11-bit ID, 500 kbaud) / ISO 15765-4 CAN (29-bit ID, 500 kbaud) / ISO 15765 -4 CAN (11-bit ID, 250 kbaud) / ISO 15765-4 CAN (29-bit ID, 250 kbaud).
*Function: 1. Read general and manufacturer specific diagnostic trouble codes and display their meanings (more than 3000 common code definitions in the database). 2. Clear the fault code and turn off the MIL ("Check Engine" indicator). 3. Display the current sensor data. 4. Engine speed. 5. Calculate the load value. 6. Coolant temperature. 7. Fuel system status. 8. Vehicle speed. 9. Short-term fuel trimming. 10. Long-term fuel trimming. 11. Intake manifold pressure. 12. Time advance. 13. Intake air temperature. 14. Air flow. 15. Absolute throttle position. 16. Oxygen sensor voltage / Related short-term fuel adjustments. 17. Fuel system status 18. Fuel pressure.
*Applicable only to petrol vehicles and 12V diesel vehicles. 24V diesel/truck is not supported.
Size chart:
3.2 * 4.7 * 2.3cm
Package included:

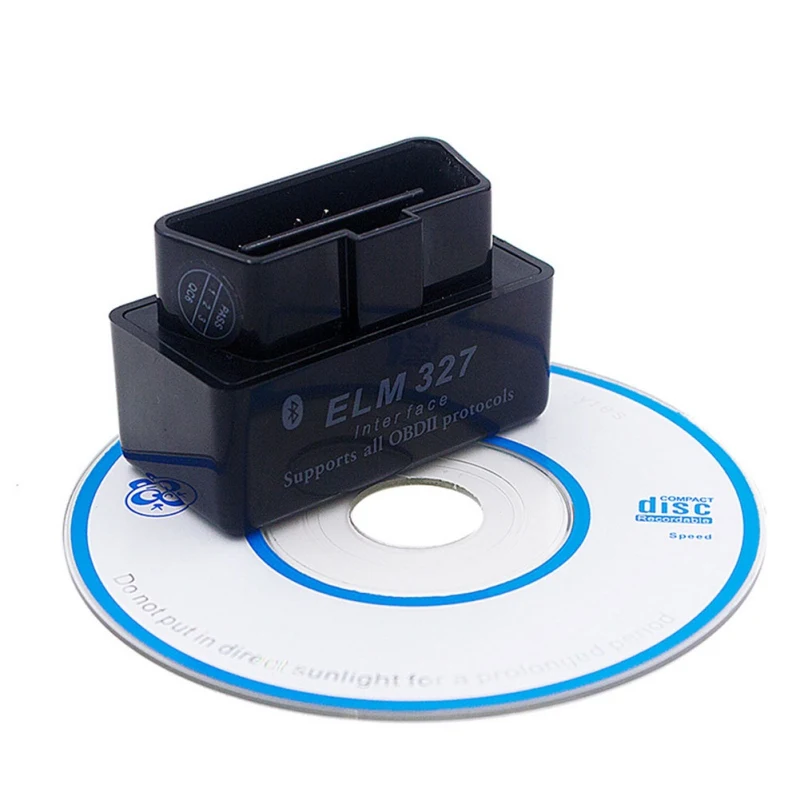

1pc x ELM327 Bluetooth obd scanning tool interface
1pc x CD driver
Notes:
1. 1 inch = 2.54 cm
2. Please measure it yourself to choose the right size.
3. Due to the difference between the different displays, the picture may not reflect the actual color of the item. Thank you!
